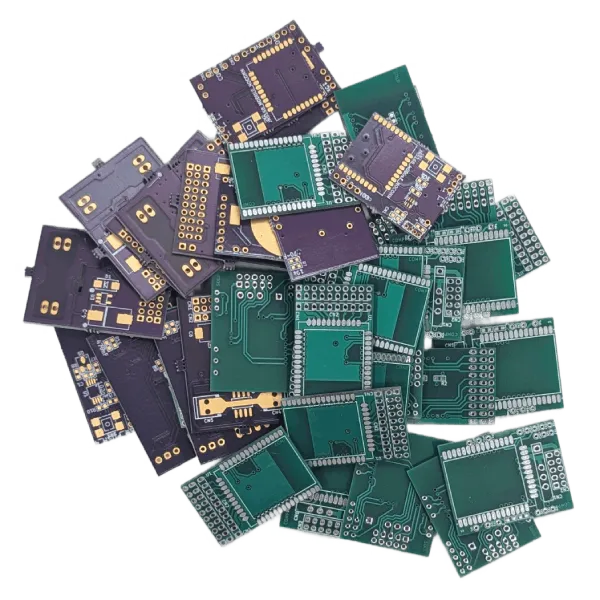

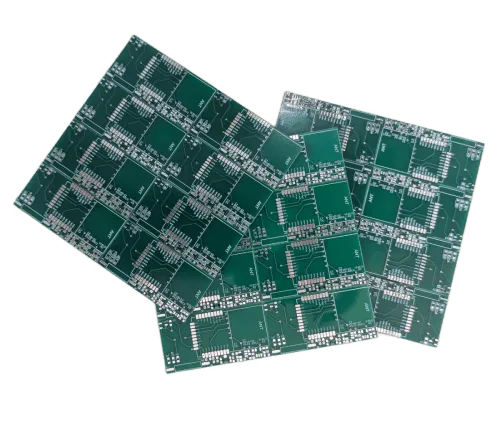

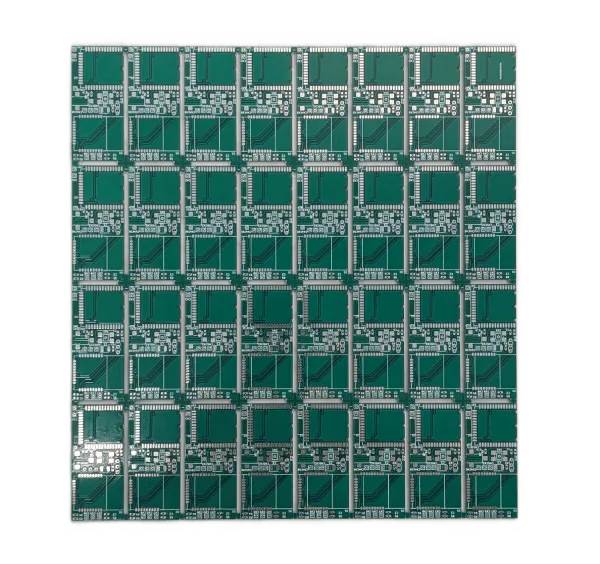

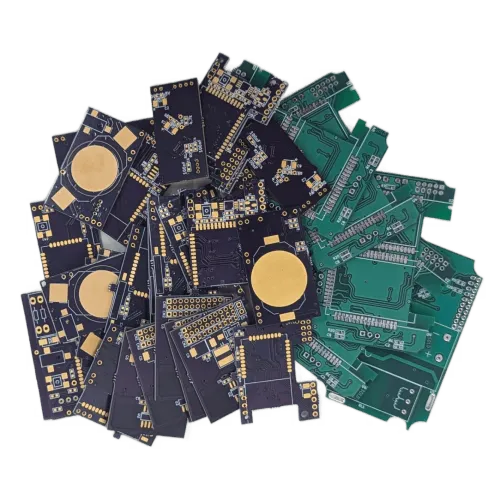

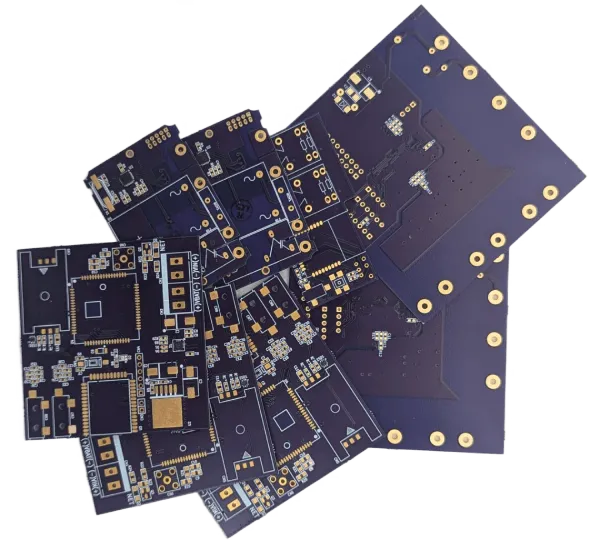

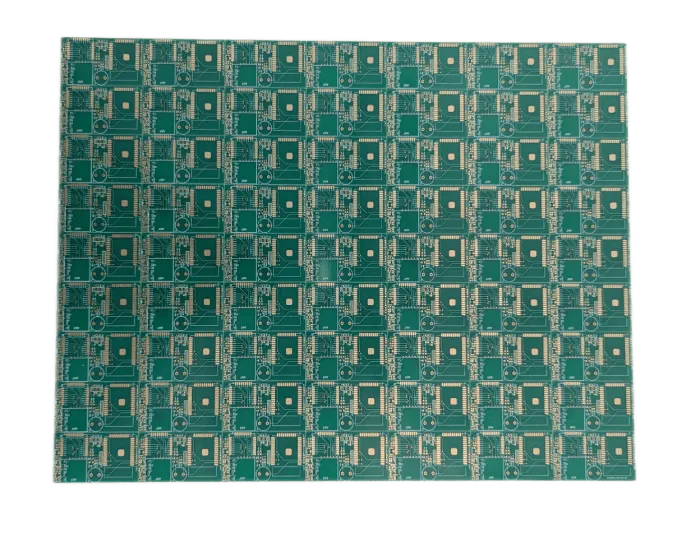

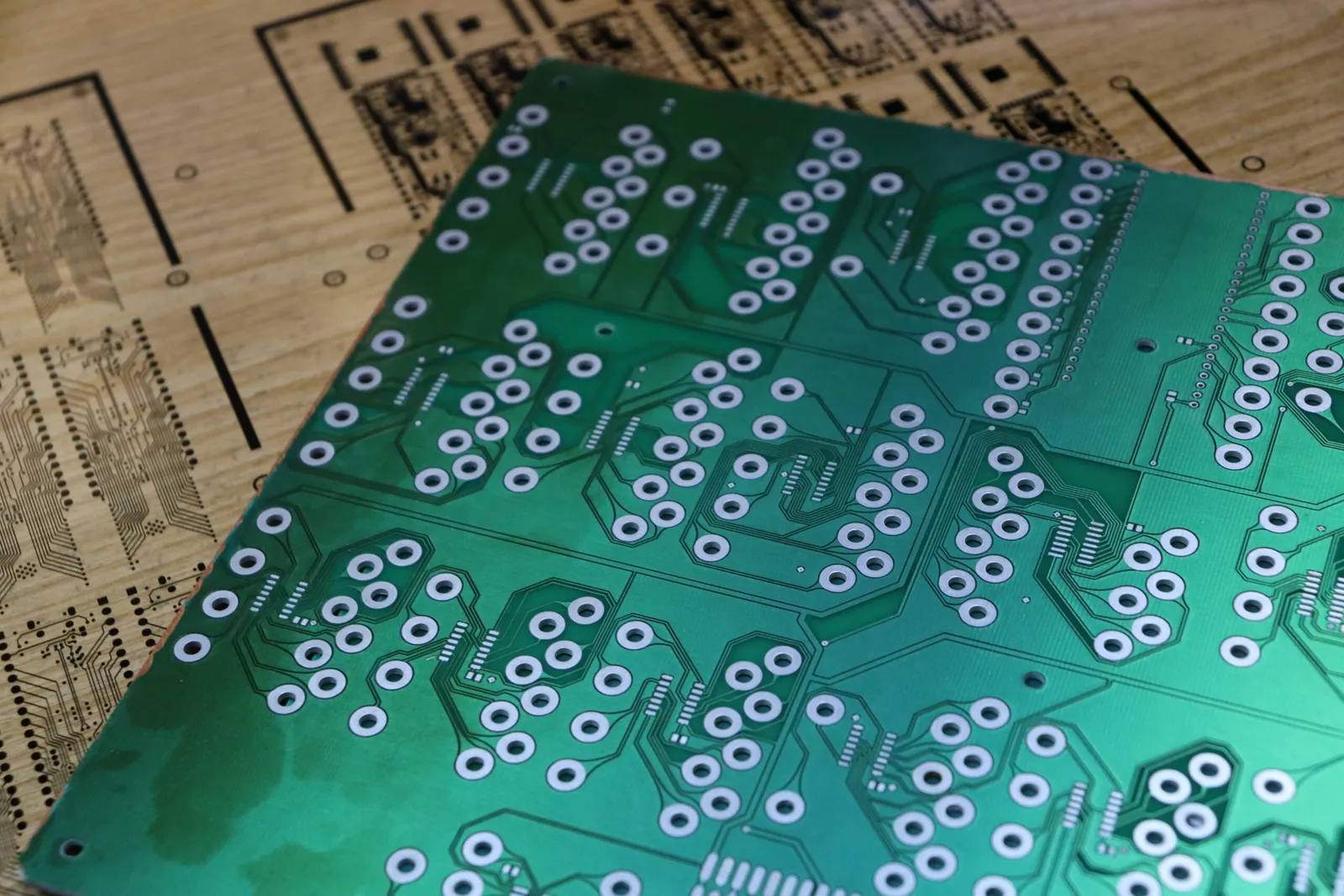

PCB Manufacturing
PCB manufacturing services for precision fabrication and reliable electronic circuit board production.
- Rapid prototyping: As fast as 48 hours
- Layer count: 1-layer, 2-layer, and multilayer (up to 6 layers)
- Minimum track width and spacing
Standard: 0.2mm
Complex: 0.1mm
Special: 50-100μm - Minimum hole size
Standard: 0.3mm
Complex: 0.2mm
Special: 50-100μm - Materials
Standard: FR-4 (thickness: 1mm -1.5mm)
Pre-order: Standard and High-tg FR-4 (thickness: 0.2mm - 3mm), Rogers, Aluminum, Copper-core, Teflon
PCB Design
PCB design services according to technical specifications.
- CAD files development based on your technical specifications
- In-House Schematic CAD files Development
- Design Modification Support

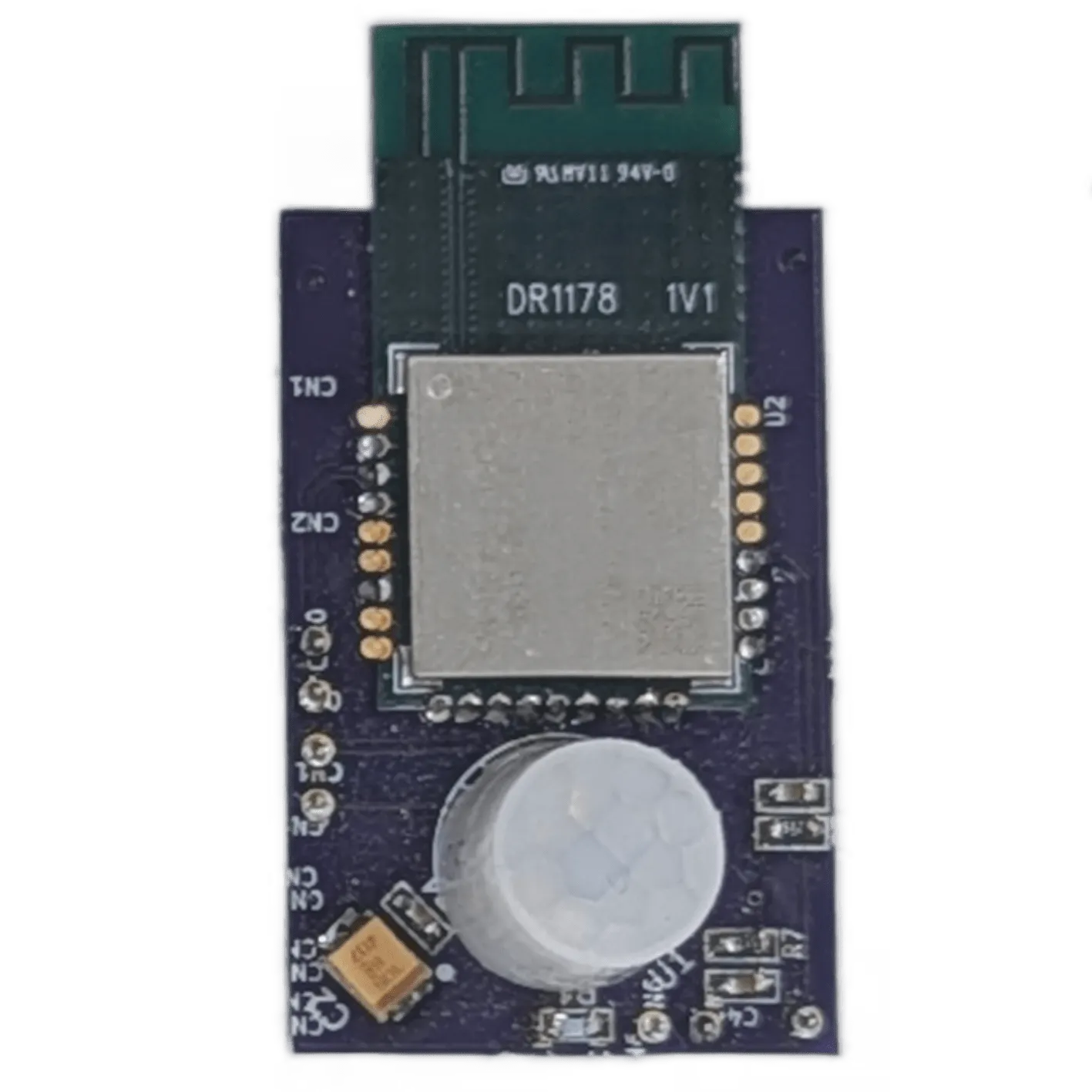

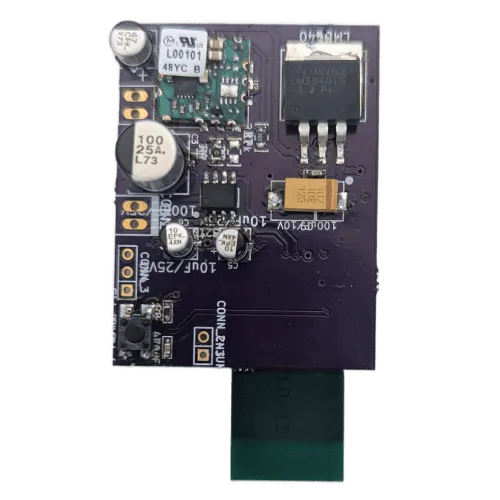

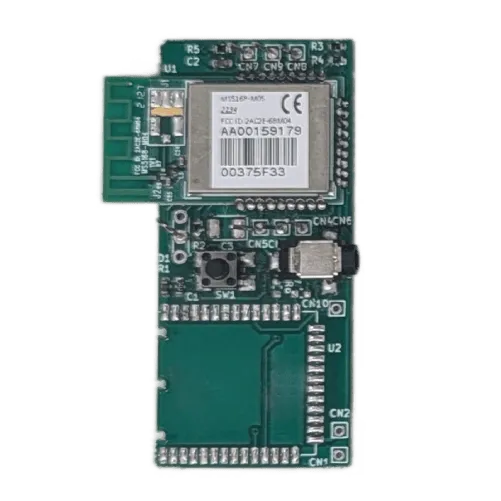

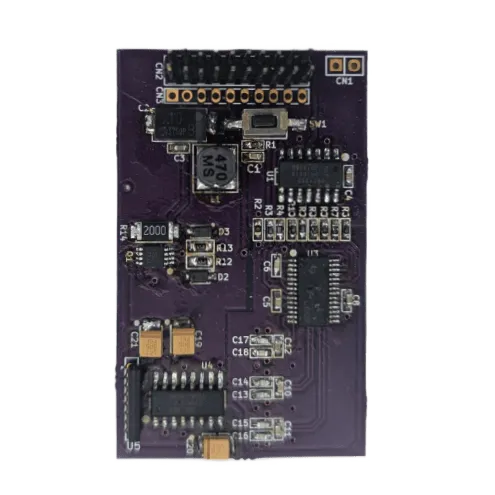

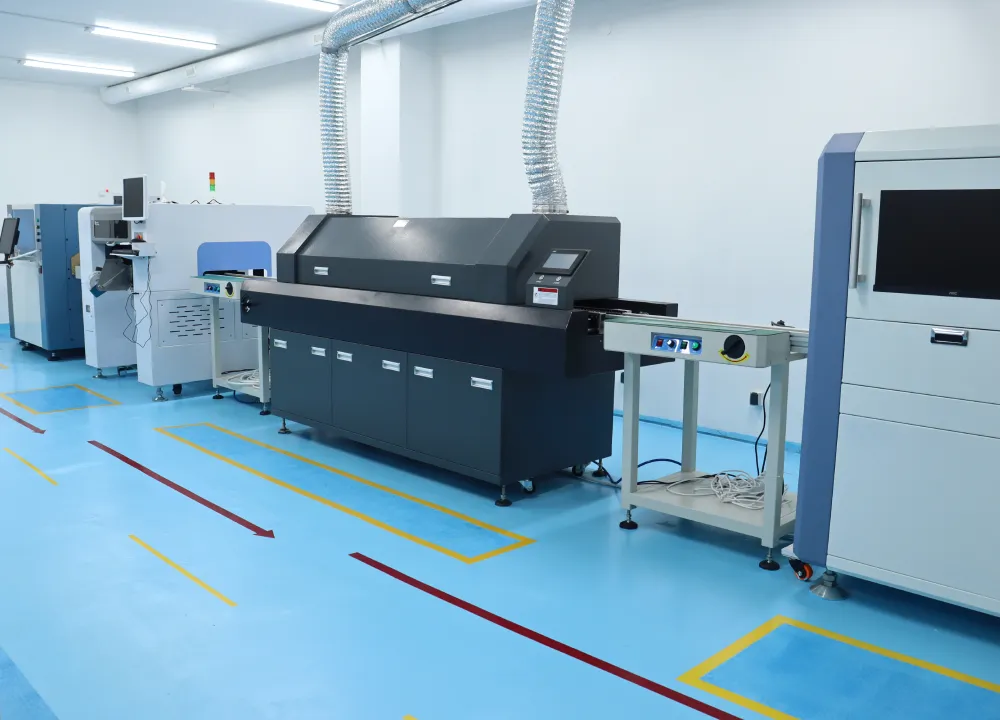

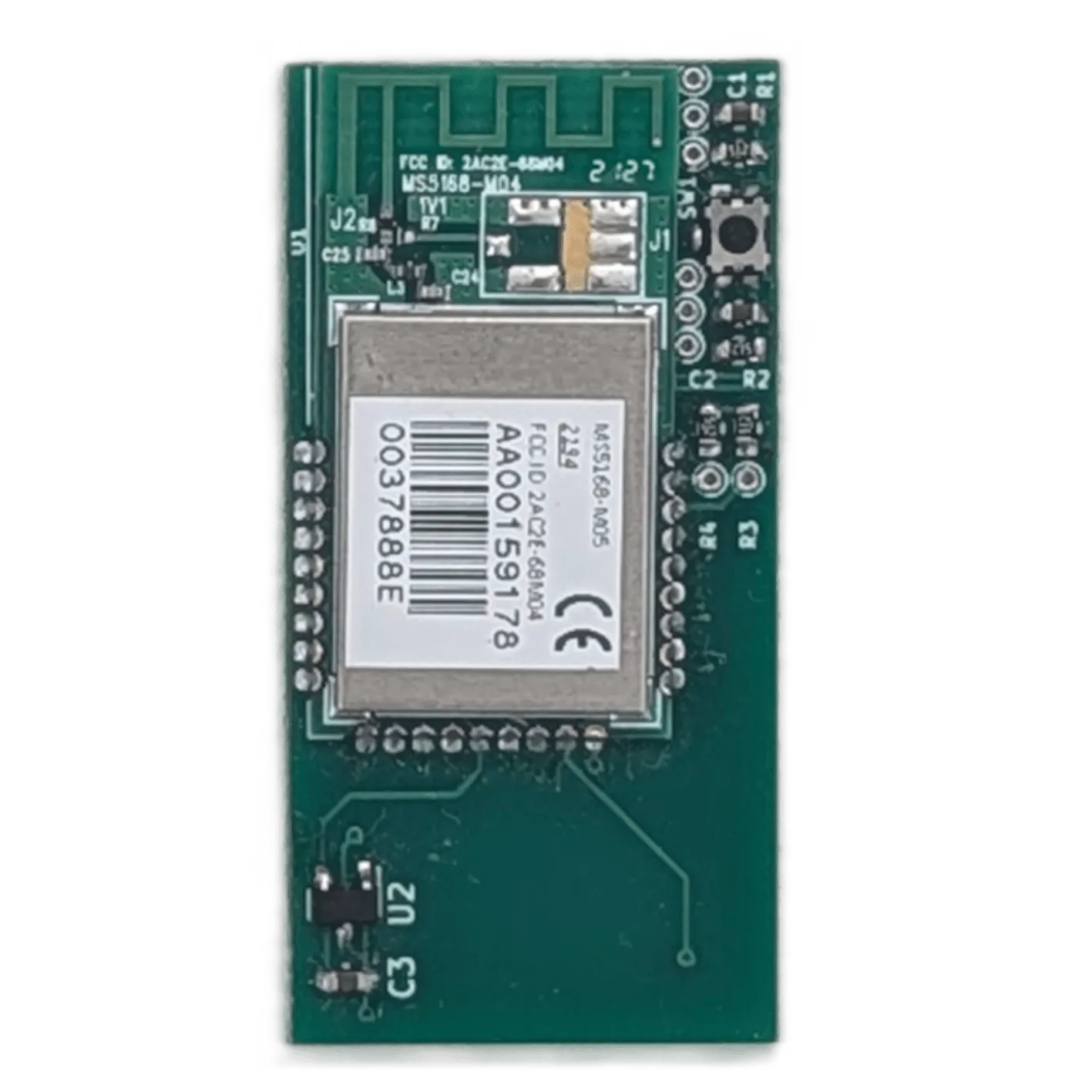

PCB Assembly
Seamless, automated assembly service with AOI inspection.
- Components Sourcing
- Fast Turnaround Times
- Automated Optical Inspection (AOI)

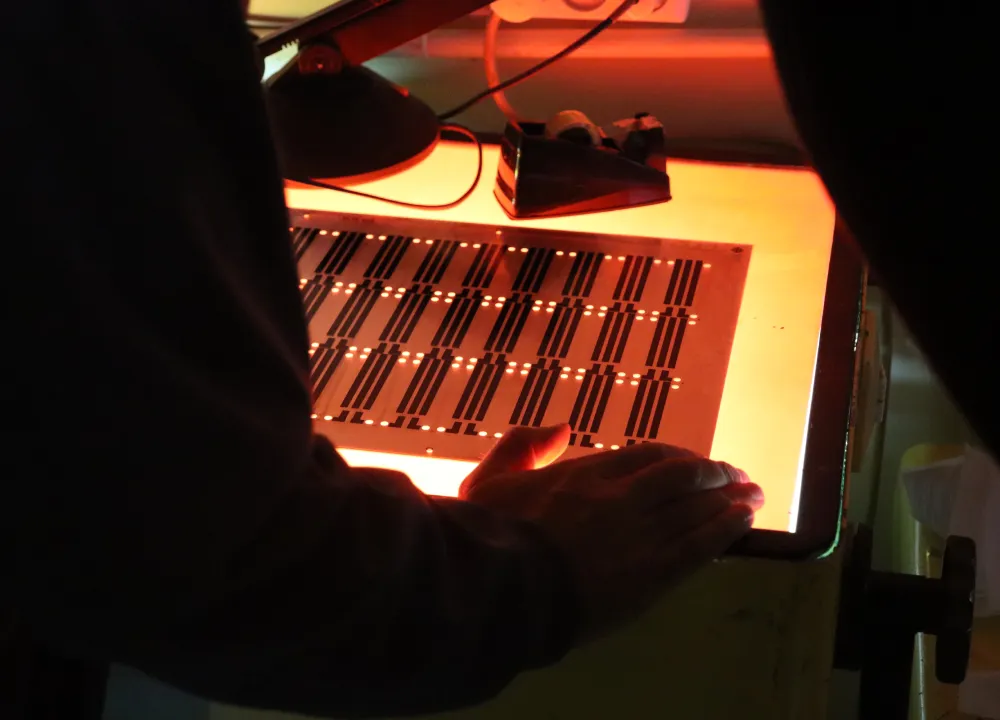

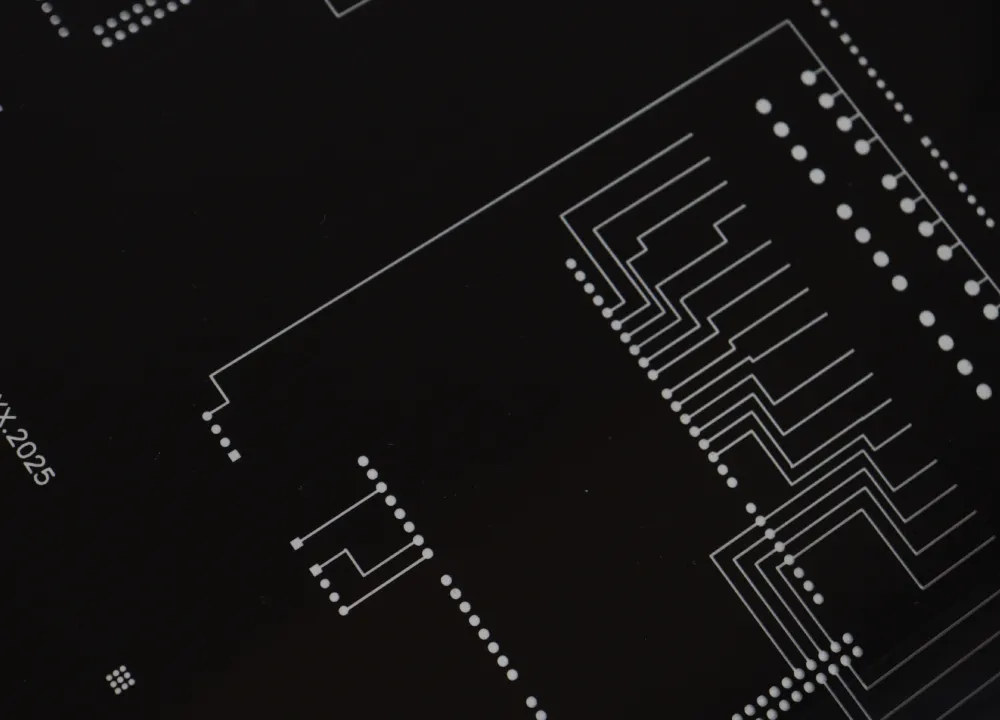

Photolithography
High-resolution patterning for intricate PCB features.
- Accuracy: 5µm
- Film Thickness: 12µm and 30µm
- Dimensions: from 100x100mm to 56x46cm

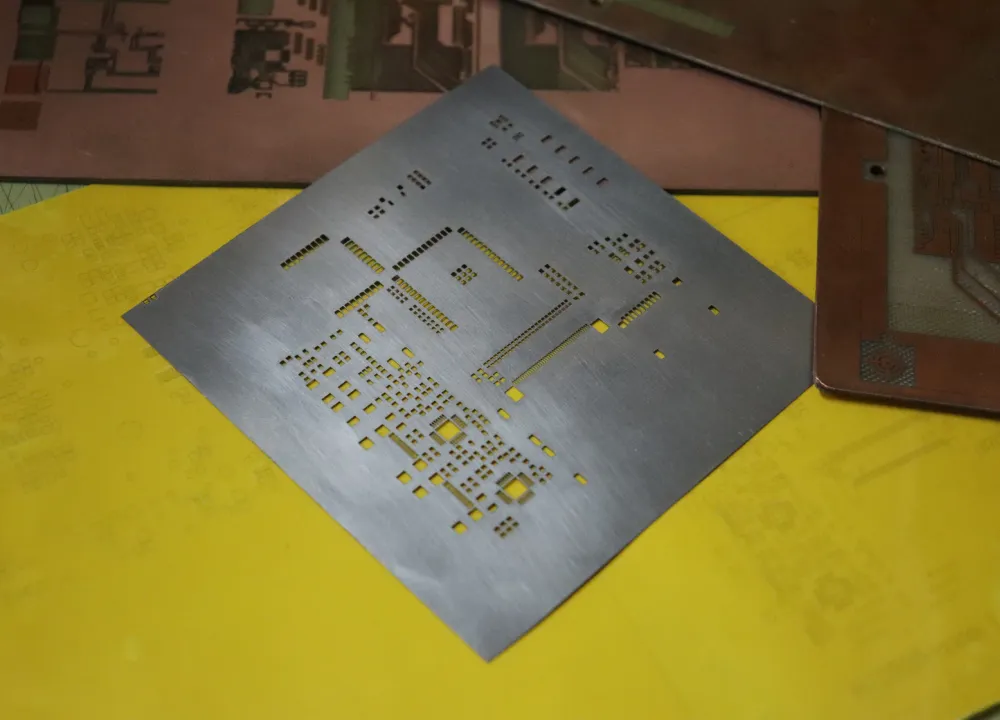

SMT Stencils
SMT stencils for accurate placement.
- Framed or Frameless
- Precision Laser Cutting
- Minimum Aperture Size: 0.08mm
